This example implements a solution to the
classic Dijkstra's Dining Philosophers problem (DPP).
It also illustrates instantiating of active
objects from a template (class) and working with
timers.
DPP illustrates basic challenges of
multithreading. Several (originally 5)
philosophers are gathered around a table with a
big plate of spaghetti in the middle. The
spaghetti is so slippery that a philosopher
needs two forks to eat it. Between each
philosopher is a fork. The life of a philosopher
consists of alternate periods of thinking and
eating. When a philosopher wants to eat, he
tries to acquire forks. If successful in
acquiring two forks, he eats for a while, then
puts down the forks and continues to think. The
key question is : Can you write a program for
each philosopher that never gets stuck?
The problem is actually about resource
allocation and its main pitfalls: race
conditions, deadlock and starvation. An attempt
to prevent them can cause more subtle problems
assosiated with fairness and suboptimal system
utilization.
Start this VI and it will create as many
philosopher objects as there are elements in
Philosophers, Thinking Time, and Eating Time
Arrays. The number of elements in these arrays
needs to be the same, of course. The Is Hungry?
and Forks in Use arrays will be scaled
automatically.

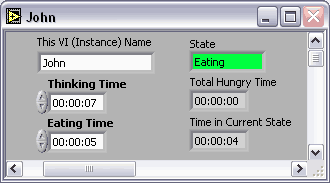

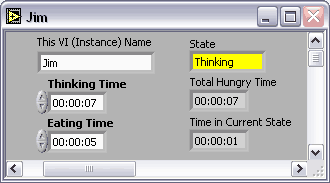

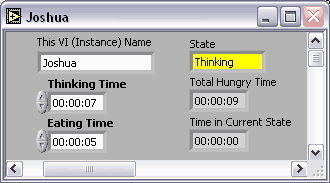

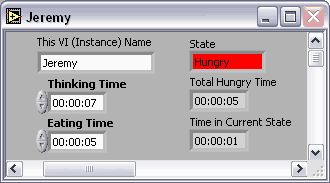

The philosopher's individual VI windows will
open on top of each other, so you have to drag
them and place around your screen to see the
whole picture. You can change philosopher's
individual eating and thinking times from the
initial values defined in the main VI.
Please note that this solution, though free of
concurrency hazards, does not provide fairness!
Increase, say, eating time of one philosopher
and you will see how neighbors of that selfish
bastard start piling up their hungry time.
Fairness can be added by introducing a Forks
Taken Away event sent from Table to Philosopher
and keeping track of hungry and eating times for
each philosopher in the Table/Butler Object.
Then some criterion of fairness has to be chosen
and implemented in the Table object to decide
when to take away forks (preempt processes) and
to whom they should be given.
